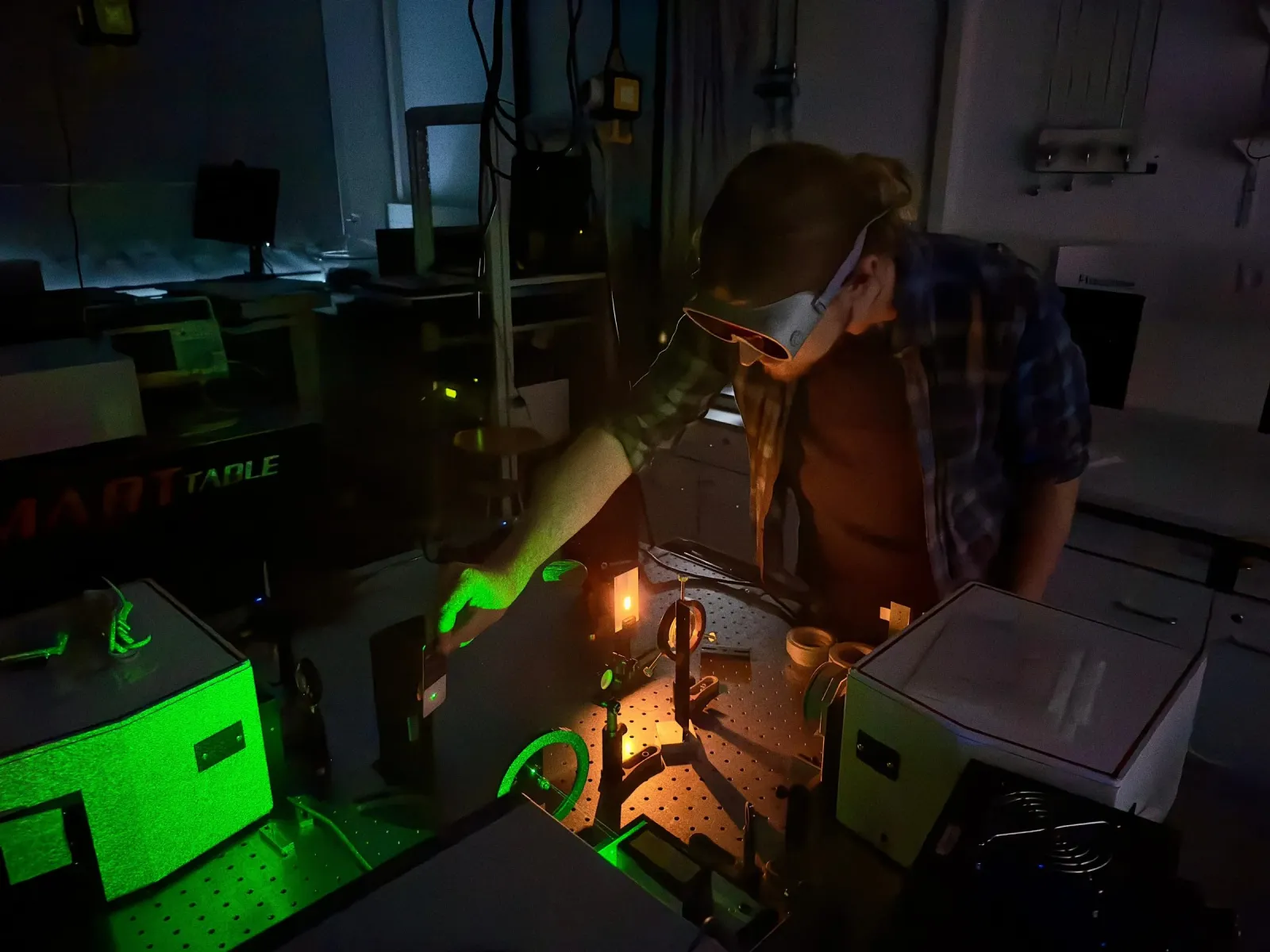

How to build your own PIA

Component list and example LabVIEW program for building a photoinduced absorption (PIA) setup.

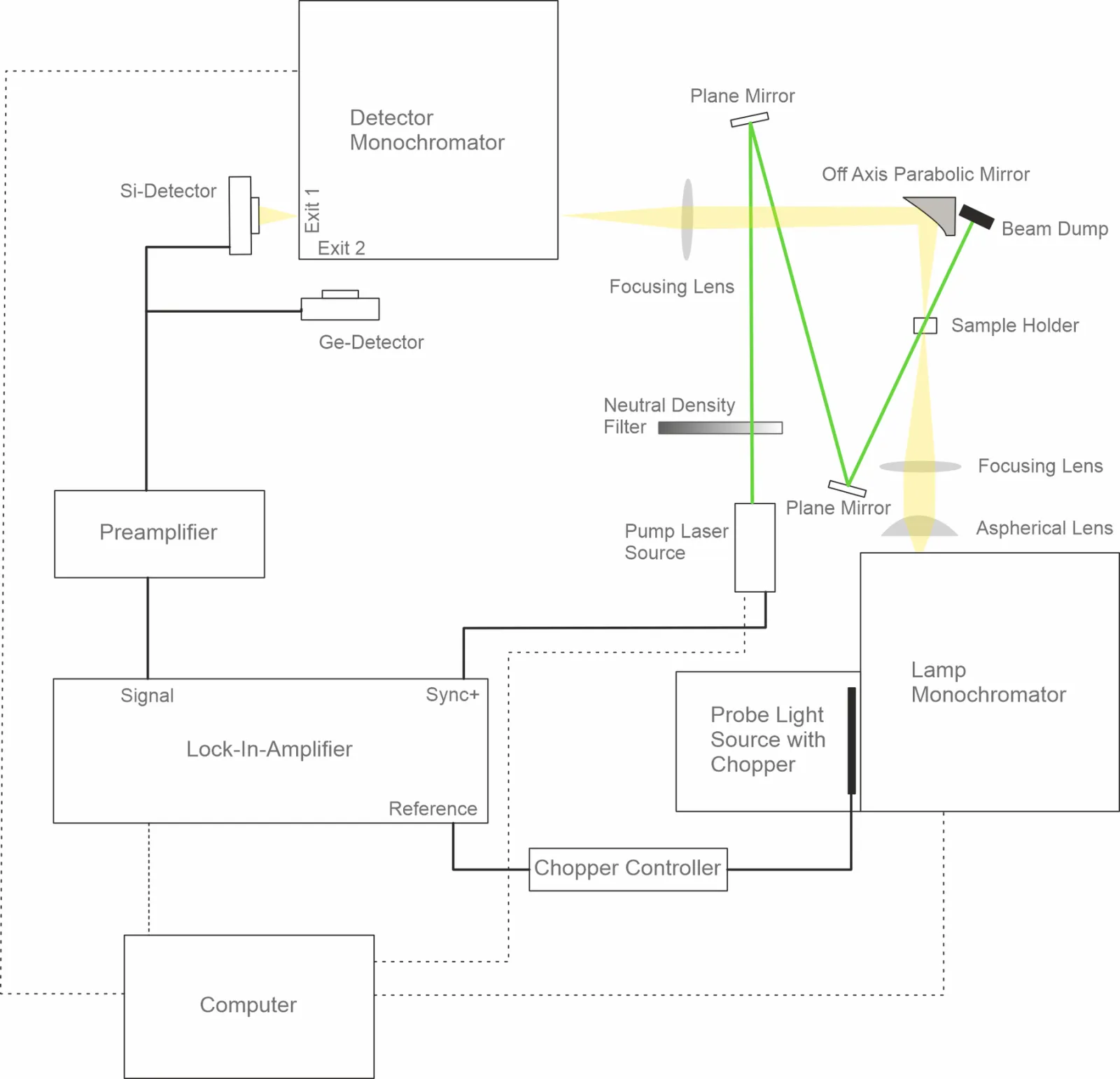

List of components

Light source: Double QTH/IR source B-ILD-QH-IR-24
(Bentham product page)
Monochromators (one to be coupled with QTH/IR): MSH-300M (motorised slits), gratings MSG-T-1200-500, MSG-T-600-1250, MSG-T-300-3000
(QD Europe)
Cobolt lasers 06-MLD with heat sink
(Hübner Photonics)
Low noise current preamplifier: Stanford Research Systems Model SR570
Lock-In amplifier: Stanford Research Systems Model SR860
Detectors:
- Si biased Thorlabs detector DET10A/M
- InGaAs Thorlabs detector DET10D/M
- InSb IS-2.0 from ACAL
Lenses or mirrors to focus white light on the sample and further onto the detector depend on the space available and can vary.

For more details and the example of a LabVIEW program, please read the PDF: Luca Kühnel's Bachelor Thesis (2025) – see the download below.

What PIA is and how we use it: 'Slow' Spectroscopy Lab
